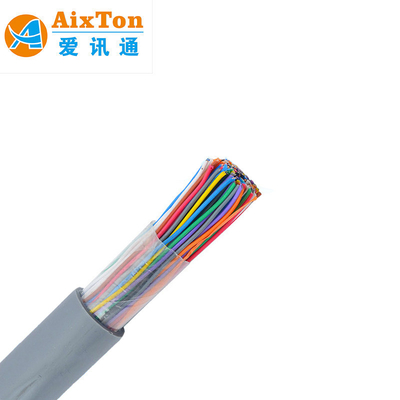

Customized 20 30 50 100 pairs twisted pair Copper Core telephone cable for outdoor indoor underground installation
Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Naam | 100pairs telefoonkabel Binnen | Isolatiematerialen | HDPE |
|---|---|---|---|
| Jacket | Wit pvc | Leidermateriaal | Stevig Koper |
| Leider OD | 0.4/0.5/0.6 | Isolatie materiaal | HDPE |
| Toepassing | binnen/buiten | Pakket | Houten trommel |
| Markeren | Twisted Pair Telephone Cable,Customized Telephone Cable,Copper Core telephone cable |
||
Productomschrijving

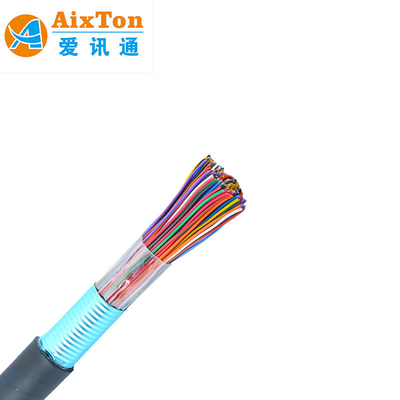

Multi Pair Telephone Cable 5-100pair Waterproof Jelly Underground Aluminium Tape Armoured
0.4 0.5 0.6 copper
Features
1. Conductor: adopt soft round copper wire as conductors, whose diameter includes 0.4, 0.5. 0.6mm
2. Insulation: adopt one of flame retardant polyethylene, PVC
3. Line pairs: every two insulation conductor strands into pair according to the stated chromatogram
4. Sheath : the technical spec of PVC sheath material is up to the standard of GB8815
5. Indoor telephone cable, Type for HYV, HYY, HYYC
6. Sample is available
7. OEM/ODM
2. Insulation: adopt one of flame retardant polyethylene, PVC
3. Line pairs: every two insulation conductor strands into pair according to the stated chromatogram
4. Sheath : the technical spec of PVC sheath material is up to the standard of GB8815
5. Indoor telephone cable, Type for HYV, HYY, HYYC
6. Sample is available
7. OEM/ODM
Basic Construction
1. Conductor Dimension: 0.33~0.75(±0.02)mm
2. Conductor Material: OFC (Oxygen Free Copper) /BC/CU/CCC/CCA/CCS
3. Insulation: HD-PE (High density polyethylene)/PE
4. Number of Twisted Pair(or not):2- 200P
5. Jacket: PVC (Polyvinyl-Chloride) or LSOH (Low Smoke Zero Halogen)or PE(Polyethylene)
6. Color: different color is available
7. Operating temperature: -40°C - +75°C
1. Conductor Dimension: 0.33~0.75(±0.02)mm
2. Conductor Material: OFC (Oxygen Free Copper) /BC/CU/CCC/CCA/CCS
3. Insulation: HD-PE (High density polyethylene)/PE
4. Number of Twisted Pair(or not):2- 200P
5. Jacket: PVC (Polyvinyl-Chloride) or LSOH (Low Smoke Zero Halogen)or PE(Polyethylene)
6. Color: different color is available
7. Operating temperature: -40°C - +75°C
Application standard:
YD/T1019-2013,ISO/IEC 11801:2008,ANSI/TIA/EIA 568-B.2
YD/T1019-2013,ISO/IEC 11801:2008,ANSI/TIA/EIA 568-B.2
Product Details
| Conductor Diameter |
0.4mm | 0.5mm | 0.6mm | ||||||
| Number of Pairs | Outer Diameter MM |
Normal Weight Kg / Km (Approx) |
Standard Length Meters | Outer Diameter MM |
Normal Weight Kg / Km (Approx) |
Standard Length Meters | Outer Diameter MM |
Normal Weight Kg / Km (Approx) |
Standard Length Meters |
| 10 | 10.2 | 110.9 | 1000 | 11.4 | 172.5 | 1000 | 12.7 | 175.5 | 1000 |
| 20 | 12.2 | 116.47 | 1000 | 13.9 | 223.4 | 1000 | 15.7 | 291.5 | 1000 |
| 30 | 13.7 | 218.3 | 1000 | 15.9 | 301 | 1000 | 17.9 | 393 | 1000 |
| 50 | 16.2 | 316.7 | 1000 | 18.9 | 443.7 | 1000 | 21.7 | 600 | 1000 |
| 100 | 20.4 | 568.16 | 1000 | 25 | 801 | 1000 | 29.1 | 1090 | 1000 |
| 200 | 28.6 | 996 | 1000 | 34 | 1500 | 1000 | 39.2 | 2100 | 1000 |
| 300 | 32.4 | 1418.6 | 1000 | 40.4 | 2161.1 | 1000 | 47.1 | 3014.7 | 500 |
| 600 | 44.4 | 2722 | 500 | 55.8 | 4170 | 500 | 65.9 | 5871 | 500 |
| 900 | 53.1 | 3985.5 | 500 | 67.2 | 6200 | 500 | 81 | 933 | 250 |
| 1200 | 60.6 | 5253.6 | 250 | - | - | - | - | - | - |
FAQ
Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the
price advantage of products with the same quality parameters, and we promise to
achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting
"Enough Cores, Enough Meters, High Quality, High Performance". Providing
our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts
to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and
support long-term cooperative customers to upgrade to global agents and enjoy more
discounted prices.
