8 Core 12 Core MPO MTP Patch Cord MM OM3 OM4 Female To LC Fiber 12 Core MPO MTP Patch Cord 5 Meter 10 Meter

  • 8 Core 12 Core MPO MTP Patch Cord MM OM3 OM4 Female To LC Fiber 12 Core MPO MTP Patch Cord 5 Meter 10 Meter
  • 8 Core 12 Core MPO MTP Patch Cord MM OM3 OM4 Female To LC Fiber 12 Core MPO MTP Patch Cord 5 Meter 10 Meter
Plaats van herkomst China
Merknaam Aixton
Certificering ISO9001,CE,FCC,ROHS
Modelnummer AXT-MPO-8
Min. bestelaantal 50 stuks
Verpakking Details polyzak of OEM pakket
Levertijd 10-15 dagen
Betalingscondities L/C, T/T, Western Union
Levering vermogen 100000pcs elke maand

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Product Name Multimode trunkkabel (MTP) Vezelmodus OM3 50/125μm
10G Ethernet-afstand 300 m bij 850 nm Kofferbakdiameter 3.0mm-17.3mm
Waallengte 850/1300nm Pools type UPC naar UPC
Standaardconnectoren ≤ 0,2 dB Standaardconnectoren RL ≥30dB
Markeren

OM4 MPO MTP Patch Cord

,

12 Core MPO MTP Patch Cord

,

MPO MTP To LC Patch Cord
Productomschrijving

8 Core 12 Core MPO MTP Patch Cord MM OM3 OM4 Female To LC Fiber 12 Core MPO MTP Patch Cord 5 Meter 10 Meter 0

                                                             8 Core 12 Core MPO MTP Patch Cord MM OM3 OM4 Female To LC Fiber 12 Core MPO MTP Patch Cord 5 Meter 10 Meter 1

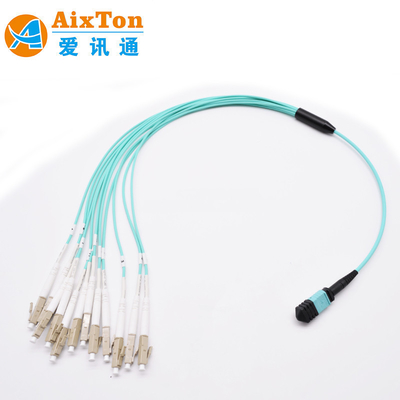

OM3 24 Core MPO Male - LC Fiber 0.9mm Fan Out Patch Cables MTP Patch Cable Assemblies



MTP/MPO Trunk Cables

MTP/MPO trunk multifiber cable assemblies facilitate rapid deployment of high density backbone

cabling in data centers and other high fiber environments, reducing network installation or

reconfiguration time and cost. They are used to interconnect cassettes, panels or ruggedized

MTP/MPO fanouts, spanning MD A, HDA and EDA zones.



Standards Compliance

RoHS, CE (EN 50575 CPR), ISO9001 and WEEE Compliant

EIA/TIA, Telecocordia GR-326-CORE Standards

IEC61754-7

TIA 605-4 (FOCIS 5)

YD/T1272.5



Features

  1. 100% pre-terminated and tested in factory to ensure transfer performance
  2. Rapid configuration and networking, reduce installation time
  3. Supports 40G and 100G network applications
  4. Jacket material: LSZH, OFNR, OFNP available
  5. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available



Model SM MM
Connector A:MPO/MTP
Connector Fiber Count 8,12,24,48 Core
Polish PC,APC PC
Insertion Loss Standard ≤0.70dB ≤0.50dB
Elite Low Loss ≤0.35dB ≤0.30dB
Return Loss PC≥50dB,APC≥60dB ≥30dB
Durability(500 Matings) ≤0.2dB
Test Wavelength 1310/1550nm 850/1300nm
Connector B:LC,LC Uniboot,SC,FC,ST
Polish PC,APC PC
Insertion Loss ≤0.2dB ≤0.2dB
Return Loss PC≥50dB,APC≥60dB ≥35dB
Durability(500 Matings) ≤0.2dB

Product Details

8 Core 12 Core MPO MTP Patch Cord MM OM3 OM4 Female To LC Fiber 12 Core MPO MTP Patch Cord 5 Meter 10 Meter 2

8 Core 12 Core MPO MTP Patch Cord MM OM3 OM4 Female To LC Fiber 12 Core MPO MTP Patch Cord 5 Meter 10 Meter 3

8 Core 12 Core MPO MTP Patch Cord MM OM3 OM4 Female To LC Fiber 12 Core MPO MTP Patch Cord 5 Meter 10 Meter 4

8 Core 12 Core MPO MTP Patch Cord MM OM3 OM4 Female To LC Fiber 12 Core MPO MTP Patch Cord 5 Meter 10 Meter 5





FAQ

8 Core 12 Core MPO MTP Patch Cord MM OM3 OM4 Female To LC Fiber 12 Core MPO MTP Patch Cord 5 Meter 10 Meter 6



Q1:What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of

products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than

that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores,

Enough Meters, High Quality, High Performance". Providing our customers with higher quality

products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the

logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support

long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
