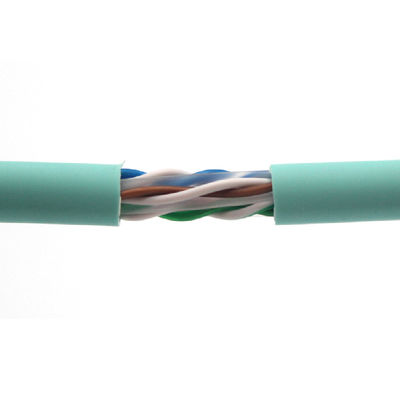

CAT6 Ethernet Cable with 6.2mm LSZH Jacket and Color-coded PE Insulation for CMR Rated Installations
| Plaats van herkomst | China |
|---|---|
| Merknaam | AIXTON |
| Certificering | ISO9001,CE,FCC,ROHS,UL |
| Modelnummer | AXT6-T2-LSZH |
| Min. bestelaantal | 100 rollen |
| Verpakking Details | 305m/1000ft/doos, 2dozen/karton, Kartongrootte:40*40*50cm, Kartongewicht:28kg |
| Levertijd | 15-20 dagen |
| Betalingscondities | T/T,L/C,Western Union |
| Levering vermogen | 5000 dozen per maand |
Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Aantal gedragingen | 8 | Isolatie | Met kleurcodes PE |
|---|---|---|---|
| Materiaal binnengeleider | 100% massief koper | Materiaal buitenjas | Lszh |
| Buitenjas Nominale overdosis | 6,2 mm ± 0,10 mm | Kleur | Paars (kleuraanpassing) |
| Gegevens Rate Support | 10/100/1000Base-T | Standaard | ISO/IEC 11801, ANSI/TIA-568-C.2 |
| Markeren | 6.2mm CAT6 Ethernet Cable,Color-coded PE CAT6 Cable,CMR Rated Ethernet Cable |
||
Productomschrijving
High-Performance Cat6 UTP Cable
305m network cable with 23 AWG bare copper conductors, designed for indoor use and Fluke certified. This Cat6 UTP cable delivers enhanced bandwidth for broadband, audio, and video applications, making it ideal for office, home, and building installations.
Key Features
- Pure Bare Copper for faster transmission and longer distance than CCA
- Tangle and twist-free packaging for easy installation
- Meter markings every 1m (3.28ft) for convenient measurement
- Supports PoE, PoE+ and PoE++ (IEEE 802.3af/at/bt)
- CE, Reach, RoHS certified for environmental compliance
- CMR Rated (Riser) for between-floor, in-wall, and non-plenum spaces
- Color-coded cables for easy identification and troubleshooting
- Tested with Fluke DSX-8000 Versiv CableAnalyzer for guaranteed performance

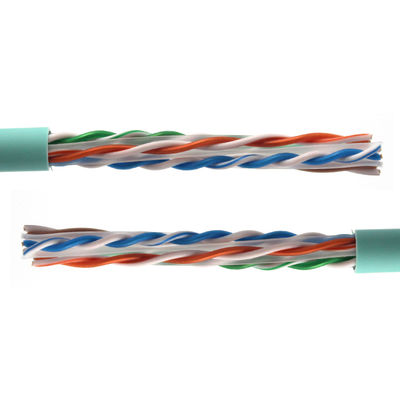

Cable Structure
Bare copper conductors with PE insulation and green LSZH jacket.
Electrical Performance (20℃)
| Rated Temperature | 75°C |
| Impedance | 100±15Ω (1-100MHz) |
| Insulation Resistance | >5000MΩ·KM DC |
| Resistance | 10.8Ω/100m |
| Dielectric Strength | DC2500V 2S |
| Pair-to-Ground Capacitance Unbalance | 330pF/100M |
Technical Specifications
| Product Name | UNSHIELDED TWISTED PAIR 8 CORE CAT6 UTP CABLE LSZH JACKET | |
| Inner Conductor | Material | 100% Copper |
| Diameter | 0.57mm ± 0.01mm (23AWG) | |
| Insulation | Color-coded PE (Polyethylene) ≥ 0.21mm, 1.03mm ± 0.01mm | |
| Cross Separator | Plastic | |
| Shielded Layer | Transparent Foil | |
| Twisted Pair |
Pair 1: Blue, White/Blue Pair 2: Orange, White/Orange Pair 3: Green, White/Green Pair 4: Brown, White/Brown |
|
| Outer Jacket | Material | New LSZH (Rip code, Optional) |
| Thickness | ≥ 0.65mm | |
| Nominal O.D | 6.20mm ± 0.10mm | |
| Reference Standard | Category 6 UL444, ANSI/TIA/EIA 568B & ISO/IEC11801 Standard | |
| Rated Temperature | -20℃ to +70℃ | |
| Supports Transmission | Digital and analogue voice, data and video signal | |
Product Images
Frequently Asked Questions
Q1: What are the advantages of your price?
A1: As a factory-direct manufacturer with professional equipment, we offer competitive pricing that's typically 1%-10% lower than comparable products while maintaining the same quality standards.
Q2: What is your quality advantage?
A2: We adhere strictly to ISO9001 quality management standards, ensuring "Enough Cores, Enough Meters, High Quality, High Performance" in all our products.
Q3: Do you support customized brands?
A3: Yes, we offer professional OEM services and provide free logo customization for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers enjoy AIXTON's stock benefits and year-end dividends. Long-term partners may qualify for global agent status with additional pricing advantages.
